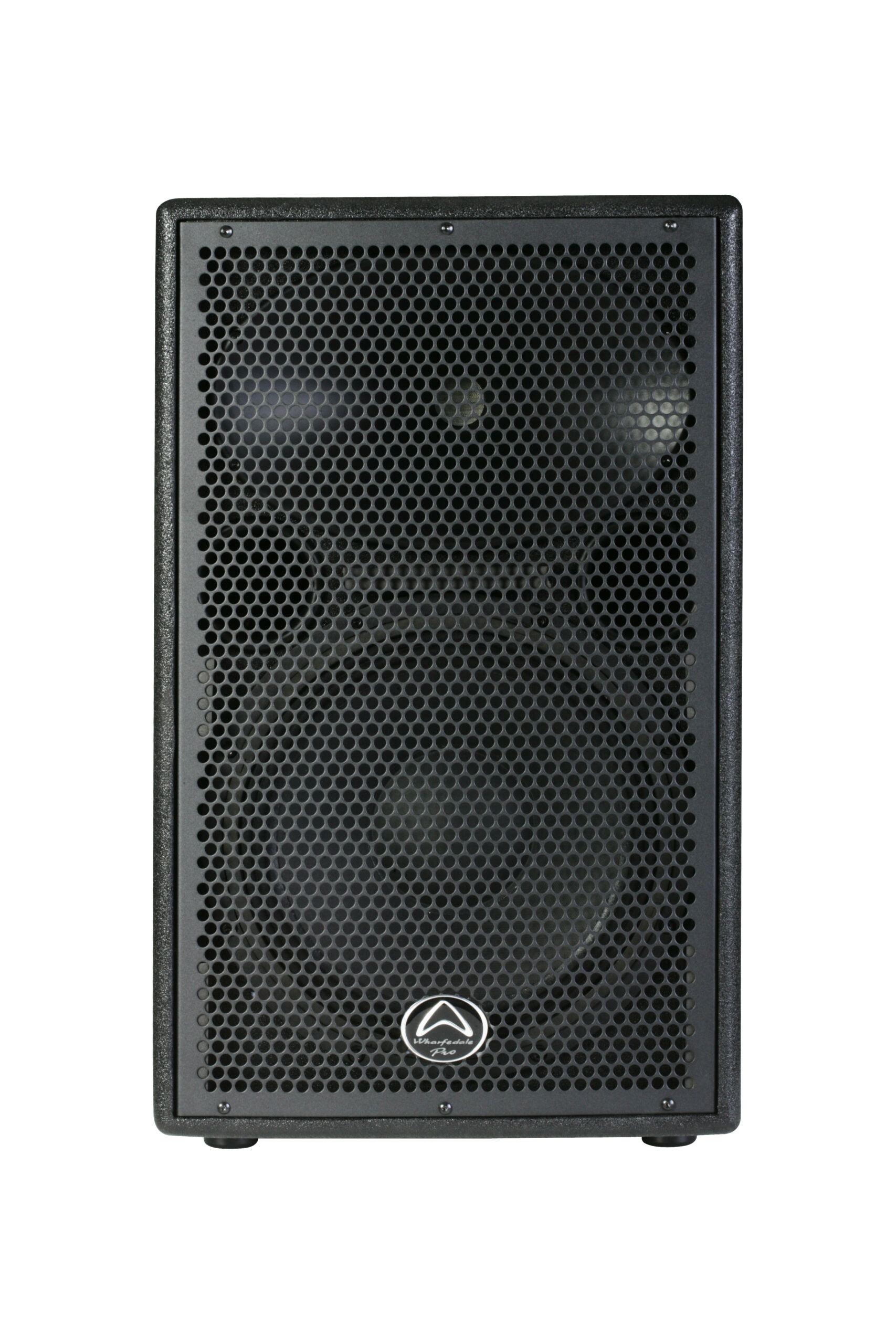

Wharfedale DELTA-X12 Passive Speaker

With rear panel switching, The DELTA-X12 Passive Speaker can operate in either Bi-Amp or Passive modes with new crossover design.

SKU: DELTA-X12

100% Genuine Products Only

We sell the products from the world's renowned brands only.

 40,999.0

12 People watching this product now!
  • Self-pick-up from our Shop

Pick up from our Bouddha Store

Free

  • Delivery within the Kathmandu Valley

Our courier will deliver to the specified address

1-12 Hours

Pathao/Indrive

  • Aramex Delivery Courier delivery

Aramex courier will deliver to your specified address

1-2 Days

"Fees vary based on geographical location."

  • Warranty Warranty 1 year
  • Genuine & Original Product

Payment Methods:

Description

Delta X builds on Wharfedale Pro Delta’s worldwide success, Its 15mm wooden construction and high-quality Rhino Rock paint make the new Wharfedale DELTA-X12 Passive Speaker immediately recognised. Its cabinet has the Wharfedale Pro ‘boomerang’ emblem. The engineering team produced more than just a new look. Delta X12 features a revolutionary crossover design and construction within.

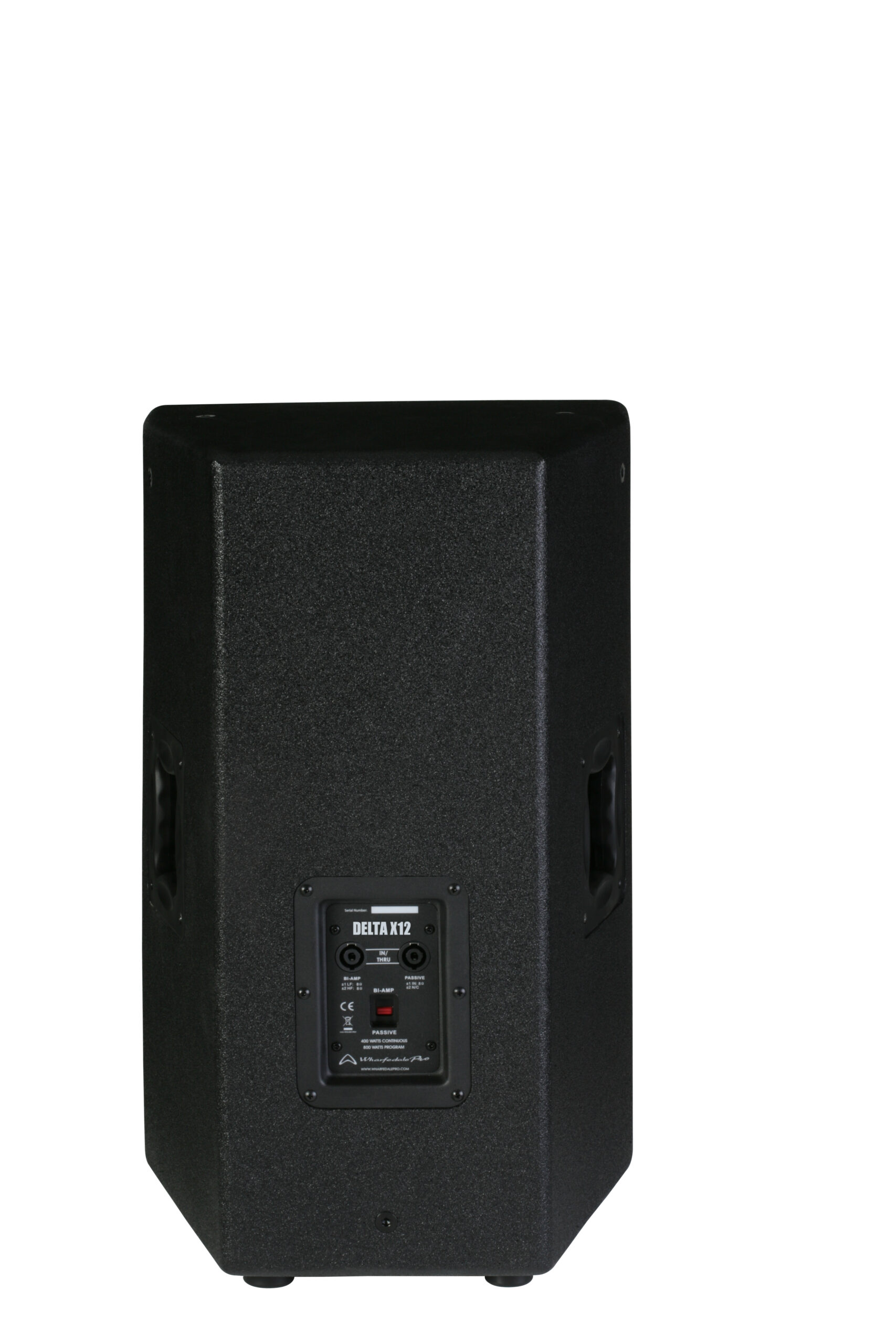

Redesigned component location and bracing increase long-term performance and reliability in delicate crossover electronics, even at huge numbers. Delta X12 can switch between Bi-Amp and Passive modes on the back. Delta X systems may be enhanced with numerous amplifiers and external crossovers due to routing flexibility.



BI-AMP & PASSIVE MODES

In BI-AMP mode, two power amplifiers are available. This lets you choose the optimal power amplifier for each loudspeaker driver. BI-AMP configurations require an external crossover to divide the signal to the specialised LF and HF amplifiers. Each amplifier powers the loudspeaker driver within its frequency range.

PASSIVE mode allows a single amplifier to power all loudspeaker drivers. The loudspeaker’s inbuilt crossover divides the complete frequency range and sends the proper frequencies to the right driver. The single amplifier powers the HF compression driver and LF transducer in a 2-way passive loudspeaker. The internal crossover separates frequency and power.

Wharfedale DELTA-X12 Passive Speaker



NEW CROSSOVER DESIGN

Internally Delta-X models have a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

DELTA-X12 Passive Speaker Features;

  • 12″ 2-way full range
  • 3″ LF voice coil
  • 129dB Max SPL
  • Birch plywood construction
  • Premium Rhino Rock paint
  • 8Ω impedance
  • 400w continuous
  • 800w programme
  • 1200w peak
  • 2 carry handles







With a commitment to provide  top-notch customer service and competitive prices, Audio Shop Nepal is the go-to destination for many audio enthusiasts in Nepal looking to purchase Wharfedale products.

Specification

Category Details
Model Name DELTA-X12
System Type Passive
Configuration Two-way
Frequency Response 60-20kHz (+/-3dB)
Frequency Range 55-20kHz (-10dB)
Sensitivity 97dB (2.83v/1m)
Maximum SPL 129dB @1m (calculated)
System Rated Impedance

Low Frequency Transducer

Feature Details
Size 332mm / 12″ Paper
Voice-Coil Size 77.1mm / 3″
Rated Impedance
Power (re: AES2-2012) 400W

High Frequency Transducer

Feature Details
Driver Type Compression Driver
Voice-Coil Size 50.8mm / 2″ Titanium
Exit Size 35.6mm / 1.4″
Diaphragm Material Titanium
Power (re: AES2-2012) 50W
Nominal Coverage (H x V) 90⁰ x 45⁰

Power Handling

Feature Details
Continuous Power 400W
Programme Power 800W
Peak Power 1600W

Crossover

Feature Details
Frequency 1.8kHz

Input/Connections

Feature Details
Input Connectors 2 x NL4 (speakON Compatible)

Hardware Features

Feature Details
Pole Mount Dual Angle (0⁰ / 10⁰), 35mm Socket
Handles 2 on Sides

Enclosure

Feature Details
Material 15mm Plywood
Finish Black paint
Grille Material 1.5mm Steel, Black

Dimensions

Feature Details
Unpacked Height 630mm / 24.8″
Unpacked Width (Front) 390mm / 15.3″
Unpacked Width (Rear) 241.2mm / 9.5″
Unpacked Depth 373mm / 14.7″
Packed Height 773mm / 28.9″
Packed Width (Front/Rear) 566mm / 22.3″
Packed Depth 464mm / 18.3″

Weight

Feature Details
Net Weight 24.7kg / 54.5lbs
Gross Weight 29.0kg / 63.8lbs
