The rear panel offers two combo XLR/TRS inputs and two XLR through outputs for connecting to other speakers and subwoofers. Quick DSP adjustments are available via the crossover switch with user-adjustable crossover selections including 80, 100, 120, and 150 Hz. The phase switch offers a choice of 0 or 180° to prevent multiple subwoofers from cancelling each other’s low frequencies. The master level offers a variable input from -∞ to +10 dB, while the font-panel LED indicator can be switched between off, limiter, and power.

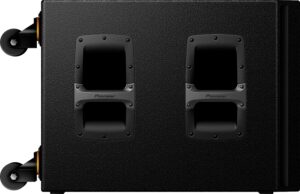

The 15mm birch enclosure is covered with an impact-resistant, black semi-matte textured finish and features four handles and four casters for ease in transport. The M20 screw pole mount allows for speaker poles to be attached for the deployment of the XPRS series tops. The Pioneer XPRS 215S ships with an IEC power cord.
