CMS 1000-3 10-Channel compact Mixer is a high-quality and versatile compact mixer designed for professional audio applications known for its reliability.
We sell the products from the world's renowned brands only.
Available on backorder
Self-pick-up from our Shop
Pick up from our Bouddha Store
Free
Delivery within the Kathmandu Valley
Our courier will deliver to the specified address
1-12 Hours
Pathao/Indrive
Courier delivery
Aramex courier will deliver to your specified address
1-2 Days
"Fees vary based on geographical location."
Warranty 1 year
Payment Methods:

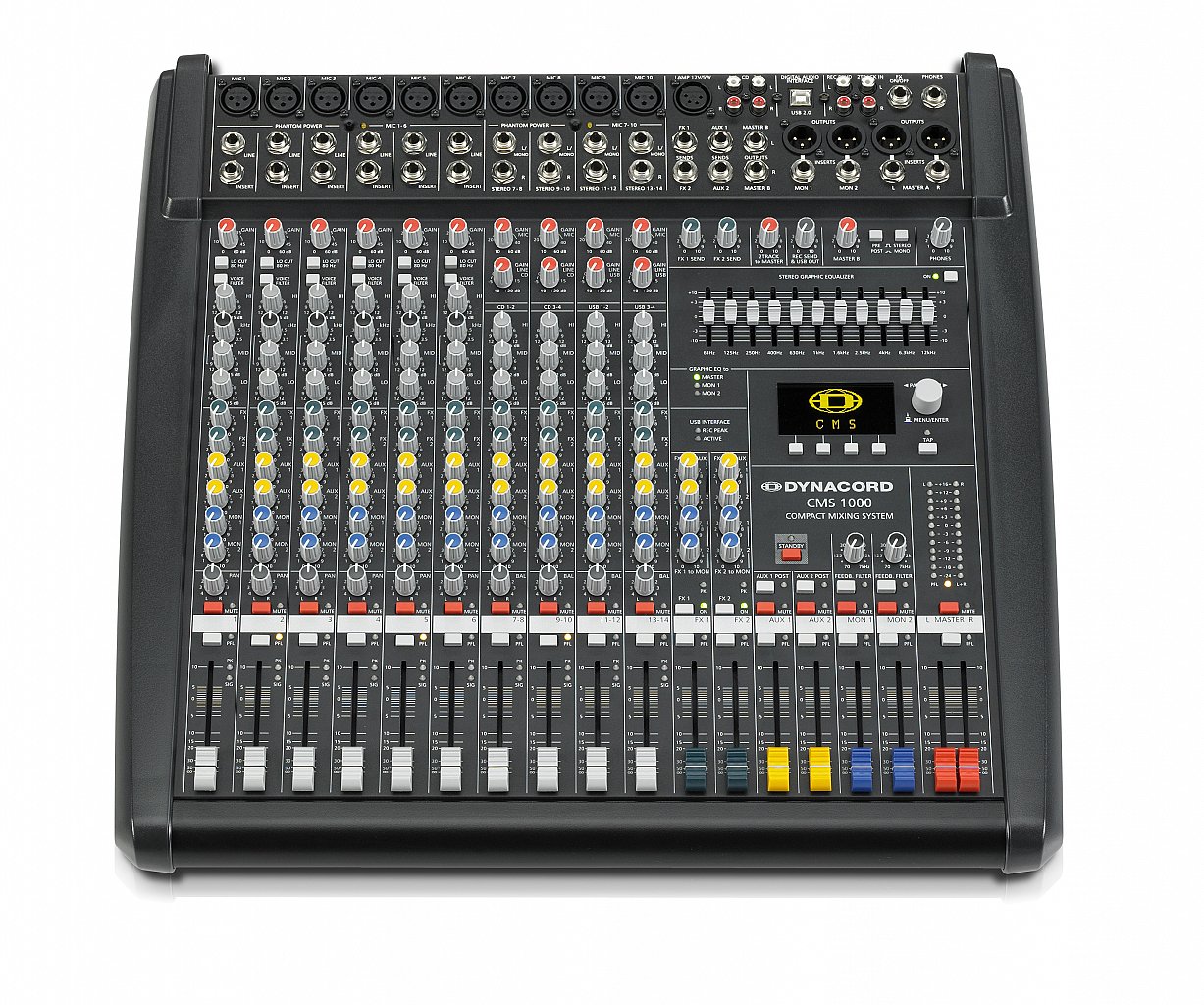

The Dynacord CMS 1000-3 10-Channel Mixer has six mic/line and four mic/stereo-line channels. Two pre- and two post-fader auxiliary ports are available. Two effects processors with 100 factory presets and a TAP key for exact delay durations. Edit and save 20 presets per user.
The mixing section starts with 10 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. A TAP key allows precise setting of delay times. Further, each preset can be edited and stored to 20 User memories.
With a commitment to provide top-notch customer service and competitive prices, Audio Shop Nepal is the go-to destination for many audio enthusiasts in Nepal looking to purchase Dynacord products.
| Category | Specification |
|---|---|
| Channels (Mono + Stereo) | 6 + 4 |
| Auxiliary (MON, FX, AUX) | 2 Pre, 2 Post, 2 Pre/Post switchable |
| MIC GAIN (Mono / Stereo) | 0 to +60 dB / +10 to +60 dB |
| LINE/CD/USB GAIN (Stereo) | -10 to +20 dB |
| THD, at 1 kHz, MBW = 80 kHz | MIC input to Master A L/R outputs, +16 dBu, typical: < 0.005% |
| Frequency Response | 15 Hz to 70 kHz (-3 dB, ref. 1 kHz, any input to any Mixer output) |
| Crosstalk, 1 kHz | Fader & FX/AUX/MON-Send attenuation: > 85 dB |
| Channel to Channel: < -80 dB | |
| CMRR, MIC input, 1 kHz | > 80 dB |
| Input Sensitivity | MIC: -74 dBu (155 µV) / LINE (Mono): -54 dBu (1.55 mV) / LINE (Stereo): -34 dBu (15.5 mV) |
| Maximum Level (mixing desk) | MIC inputs: +21 dBu / Mono Line inputs: +41 dBu / Stereo Line inputs: +30 dBu |
| Input Impedances | MIC / Insert Return: 2 kΩ / > 3.3 kΩ |
| 2Track Return & CD In: 10 kΩ | |
| All other inputs: > 15 kΩ | |
| Output Impedances | Phones: 47 Ω / All other outputs: 75 Ω |
| Equivalent Input Noise (MIC input) | A-weighted, 150 ohms: -130 dBu |
| Noise (Channel inputs to Master A L/R outputs, A-weighted) | Master fader down: -97 dBu / Master fader 0 dB, Channel fader down: -91 dBu |
| Master fader 0 dB, Channel fader 0 dB, Channel gain unity: -83 dBu | |
| Equalization | LO Shelving: ±15 dB / 60 Hz |
| MID Peaking (mono inputs): ±15 dB / 100 Hz to 8 kHz | |
| MID Peaking (stereo inputs): ±12 dB / 2.4 kHz | |
| HI Shelving: ±15 dB / 12 kHz | |
| Master EQ 11-band: ±10 dB / Q = 1.5 to 2.5 | |
| Power Consumption | without lamp: 45 W / with lamp: 50 W |
| Filter | LO-CUT, mono inputs: f = 80 Hz, 18 dB/oct. |
| VOICE FILTER, mono inputs: switchable | |
| FEEDBACK FILTER, MON 1/2: 70 Hz to 7 kHz, Notch, -9 dB | |
| Effects | Dual stereo 24/48-bit multi effects processors, 100 Factory + 20 User, Tap-Delay |
| Remote control | Footswitch, MIDI |
| Display | 128 x 64 pixels, OLED |
| Digital Audio Interface | Channels: 4 In / 4 Out |
| AD/DA Conversion: 24-bit, 44.1 / 48 / 88.2 / 96 kHz | |
| PC Interface: USB2.0, Female Type B | |
| MIDI Interface | 5-pin DIN connector, In / Out |
| Protection | Mixer Outputs: MON 1, MON 2, MASTER A (Relay controlled) |
| Switching Mode Power Supply: Mains Over/Undervoltage, High Temperature | |
| Phantom Power: 48 V DC (switchable in groups) | |
| Power Requirements | 100 V to 240 V AC, 50 Hz to 60 Hz (SMPS with auto range mains input) |
| Dimensions (W x H x D, without lid) | 510.5 x 155 x 498.5 mm (Rack-mount: 483.0 x 135.0 x 443.7 mm) |
Overview
| brand |
Dynacord |
|---|
