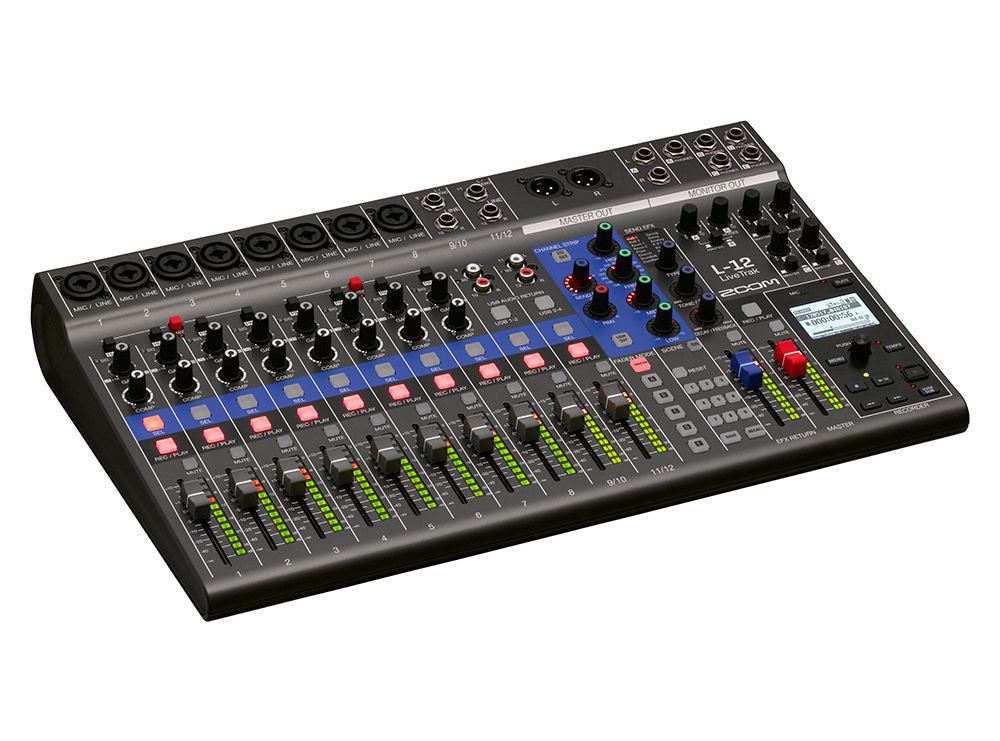

Zoom LiveTrak L12 — front panel walkthrough:
- Channel strip
- 3-band mid-parametric EQ
- 12 discrete channels (8 mono/2 stereo)
- Backlit LCD screen
- 16 onboard effects
- Custom scene settings
- Built-in slate mic and metronome
Craft professional-quality live mixes
The LiveTrak L-12 makes crafting pro-quality live mixes easy. Each of its 12 discrete channels features a 3-band mid-parametric EQ and 16 built-in effects. Eight combo jacks accommodate both XLR and 1/4″ connectors and are loaded with great-sounding mic preamps and dedicated compressors. Channels 1–2 offer hi-Z inputs for your electric guitar or bass, while channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices. You also get clear 12-segment LED metering for keeping an eye on your levels.
Produce great-sounding recordings
Recording your entire band has never been simpler, thanks to the Zoom LiveTrak L-12. Twelve individual tracks are conveniently captured onto an SD card at 24-bit/96kHz. You can then mix and overdub directly within the L-12 using its onboard effects or transfer the entire project to your DAW for further editing and processing. If you’re performing live, you can record and mix your show simultaneously. You can even set up the L-12 to record automatically when the master fader detects a certain decibel level — perfect for situations where the engineer and performer are the same people.
Create five custom headphone mixes
With the LiveTrack L-12, you don’t need separate personal monitor mixers — the monitoring is built in. Each of its five discrete monitor outputs provides a custom mix, so each member of your band can create and save their own. The L-12’s headphone amplifier delivers lots of volume — even drummers won’t have a difficult time hearing.
More than a mere digital mixer
The Zoom LiveTrak-L-12 Digital Mixer is equipped with several operation modes. Put it in Audio Interface mode and the L-12 transforms into a 14-in/4-out USB interface for your Mac, PC, or iOS device with flexible routing options. In USB Host mode, you can transfer projects and files to a connected USB flash drive. Card Reader mode allows you to transfer files to and from your computer.
USB CONNECTIVITY FOR YOUR DAW
LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*
*Apple Lightning to USB Camera Adapter required.
WHAT’S UNDER THE HOOD?
Our Best Mic Preamps Yet
At -128 dBu EIN with +60 dB maximum input gain, LiveTrak is equipped with the quietest and most advanced preamps we’ve ever made. Just wait until you hear how incredible it sounds.
High-Definition Sample Rates
The L-12 supports sample rates up to 96 kHz when recording to an SD card, allowing you to record in high definition. In Audio Interface mode, the L-12 can record up to 48 kHz to a computer and an SD card simultaneously.
Convenient Auto Recording
Record automatically by adjusting the L-12’s customizable audio input commands. Set it to start when the master fader detects a certain dB level, or use a guitar chord or snare hit to start the track. You can capture data up to two seconds before recording starts, in case a performance begins ahead of time.
Versatile Operation Modes
The L-12 is equipped with several operation modes. Audio Interface mode lets you route inputs and outputs to any DAW.
With USB Host mode, transfer projects and audio files to a connected USB flash drive. In Card Reader mode, the L-12 acts as an SD card reader, allowing you to transfer audio files to and from your computer.
Zoom LiveTrak-L-12 Digital Mixer Features:
- 12-channel digital mixer (8 mono/2 stereo)
- 14-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
- 12-track 24-bit/96kHz recording directly to an SD card
- Record up to 48kHz to a computer and an SD card simultaneously
- Create customizable, savable headphone mixes for up to 5 band members
- Complete your entire project on the mixer, or transfer all 12 discrete tracks to your DAW for editing and mixing
- 8 combo jacks accommodate both XLR and 1/4″ connectors
- 8 great-sounding mic preamps with phantom power and +60dB of gain
- Channels 1–2 offer hi-Z inputs for your electric guitar or bass
- Channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices
- Each channel features a 3-band mid-parametric EQ and 16 built-in effects
- Channels 1–8 include a dedicated compressor for controlling dynamics
- Channels 3–8 have a -26dB pad for capturing loud sources
- Clear 12-segment LED metering for keeping an eye on your levels
- Save up to 9 scenes and recall your custom settings automatically
- Record automatically when the master fader detects a certain dB level
- Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
- Built-in slate mic for recording comments or talk back
- Onboard metronome for keeping the band in sync
