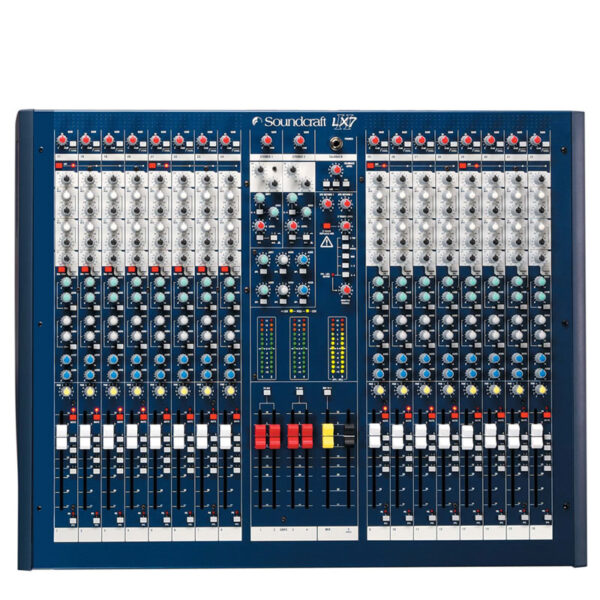

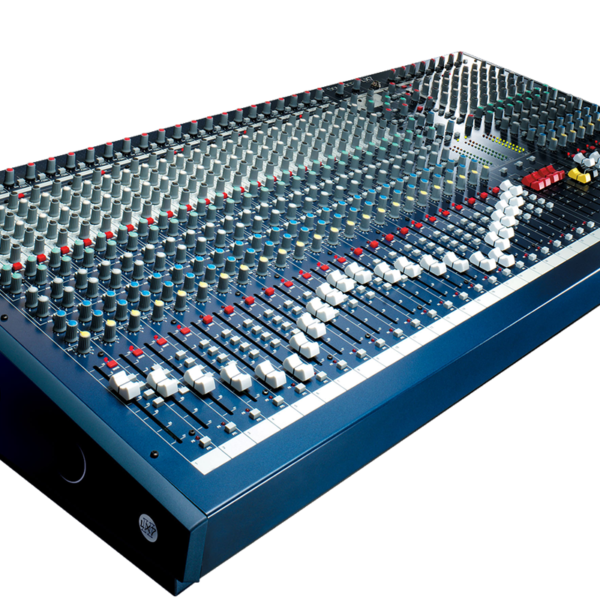

Soundcraft LX7ii 24-channel Analog Mixer

The Soundcraft LX7ii 24-channel Analog Mixer is the second generation of Soundcraft’s acclaimed LX7 consoles. Graham Blyth, Soundcraft’s creator and resident electronics genius, completely revamped the mic pre and EQ sections on the Lx7ii 24, bringing the precision and quality seen on their high-end consoles into a smaller, more inexpensive, and beautiful desk. The LX7ii 24 is the ideal mixing solution for both recorded and live applications, with 24 input channels and an easy-to-use control surface. If you’re on a tight budget but can’t get enough of that flagship, high-end Soundcraft sound, purchase the LX7ii 24!

Soundcraft LX7ii 24 at a Glance:

• Premium mic pres
• Redesigned EQ section
• Multiple routing possibilities

Premium mic pres

When he was dreaming up the Lx7ii 24, Soundcraft founder, Graham Blyth, was determined to provide the best possible quality at the best price for the customer. With this philosophy in mind, Blyth went to work on the new Lx7ii series, taking the high-end mic pre design found on Soundcraft’s larger consoles and integrating it into this smaller desk. The result is astounding – the Lx7ii sounds incredible and is offered at an extremely affordable price!

Redesigned EQ section

The LX7ii’s new 4-band EQ section is based on the EQ used in the high-end MH series. The high and low shelving sections have much steeper slopes than usual, which can help reduce mid-frequency harshness in the high band and that dreaded muddiness in the low. The LX7ii also has two swept mid frequencies, carefully selected for maximum control during live performances. Every band provides 15dB of cut or boost, and there is a dedicated bypass switch, allowing you to compare treated and untreated sounds without having to completely reset the controls.

Multiple routing possibilities

With six flexible auxiliary sends, the user can choose between monitor or effects-oriented mixes. Auxes 1-6 are generally post-fader, post-EQ, but auxes 1-4 can be switched in pairs to be pre-fader, post EQ, making 4 pre-fader foldback mixes or 6 post-fader effects sends possible.

Soundcraft LX7ii 24 Features:

• 24 input channels
• 48v phantom power switched in blocks of four
• 1/4″ line input jack for balanced or unbalanced instruments
• GB30 padless mic preamp provides up to +15dBu input capability
• 18dB per octave highpass filter straight after preamp
• Pre-fade, pre-EQ (but post highpass filter) insert point
• Direct outputs on all but the last 8 channels
• Premium mic pres
• Enhanced, switching EQ section
• 6 flexible aux sends
• Pre-fader, post-EQ soloing
• LED doubles as a peak indicator
• Stereo input section
• Group, master, and control room sections
